How Much Weight Can a Floating Shelf Hold? Heavy-Duty Steel Floating Shelves by Ponoma
One of the most common questions we hear is: how much weight can a floating shelf actually hold?
The short answer: it depends on the engineering of the shelf and the strength of the wall. Ponoma floating shelves are designed as heavy-duty steel floating shelves, built around a rigid 1.2 mm internal steel frame with distributed mounting points that spread loads across the entire wall interface.
What Determines Floating Shelf Load Capacity?
The load capacity of a floating shelf is not determined by thickness alone. It is controlled by four main factors:
- Internal structure (steel frame vs. decorative brackets)
- Number and spacing of mounting fasteners
- Distance of the load from the wall (cantilever length)
- Wall construction (studs, masonry, concrete)
Most standard floating shelves fail because loads are concentrated at only a few brackets. Ponoma shelves use a full-length steel frame with evenly spaced mounting holes, reducing stress concentration and increasing overall stability.
The Physics Behind Heavy-Duty Floating Shelves
A floating shelf behaves like a cantilever beam fixed at the wall. The maximum bending moment always occurs at the wall interface:
M = W × L
Where W is the applied load and L is the distance from the wall. Increasing stiffness and distributing mounting points reduces both bending stress and deflection.
If a shelf uses N fasteners anchored into structural material, the approximate load per fastener becomes:
F ≈ W / N
Ponoma shelves maximize N by spacing mounting holes across the entire steel frame, instead of relying on two or three brackets.
Estimated Load Capacity by Shelf Size (Proper Wall Required)
The table below shows typical real-world load ranges for Ponoma heavy-duty steel floating shelves when installed into studs or masonry. Actual capacity depends on wall structure, fasteners, and installation quality.
| Shelf Length | Shelf Depth | Mounting Type | Estimated Load Capacity* |
|---|---|---|---|
| 48" (1220 mm) | 10–12" | Wood studs | 200–300 lb |
| 60" (1524 mm) | 10–12" | Wood studs | 300–400 lb |
| 72" (1829 mm) | 10–12" | Concrete / masonry | 400+ lb |
*Values shown are conservative estimates for evenly distributed static loads. Dynamic loads and point loads increase stress and should be evaluated separately.

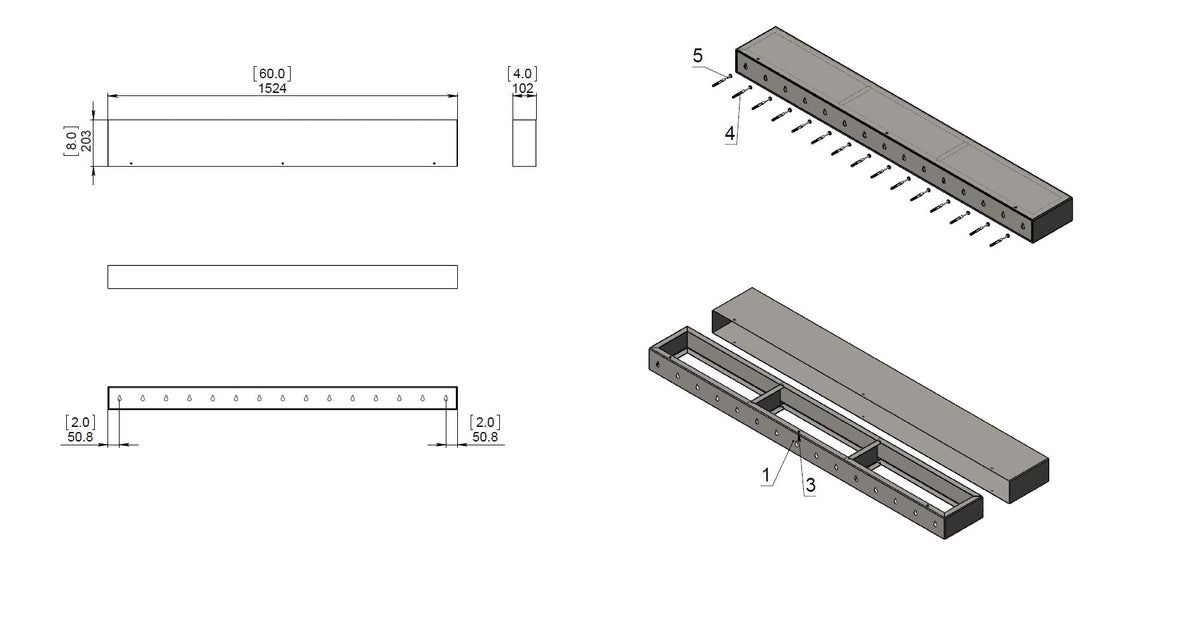

Engineering Drawings: Internal Steel Frame
The drawing below illustrates a typical Ponoma floating shelf with internal steel reinforcement and distributed mounting geometry.
Real-World Load Testing (Video)
Theory matters, but real-world testing matters more. Below is a video showing a Ponoma heavy-duty floating shelf loaded with substantial weight.
Load capacity depends on wall structure and installation quality. Shelves installed into studs or masonry can support significantly higher loads than drywall-only installations.
Customer Installations: Heavy Loads, Everyday Use
Ponoma shelves are used daily for appliances, books, dishes, games, and bar collections — not just decorative items.
Internal Testing & Office Use
At the Ponoma office, a small shelf mounted on a wooden wall is even used for physical training, including pull-ups. This demonstrates the structural stiffness of the steel frame — though this is not an installation recommendation.
Disclaimer: Bodyweight exercises create dynamic loads. Do not attempt pull-ups or similar activities unless wall structure and installation have been verified by a qualified professional.
Explore Ponoma Steel Shelves and Furniture
Ponoma floating shelves are part of a larger system of engineered steel furniture designed for real structural loads.
- Stainless Steel Floating Shelves — heavy-duty wall-mounted shelves with internal steel frames
- Steel Furniture Collection — tables, counters, and structural furniture built on the same principles
- Ponoma Kitchen Island — a load-bearing steel island using the same frame-based engineering
Same Load Engineering Used in Ponoma Tables
The same principles — steel stiffness, internal frames, and load distribution — are used in Ponoma tables and counters. A detailed breakdown of table load capacity will be covered in the next article.
FAQ: Floating Shelf Weight Capacity
How much weight can a heavy-duty floating shelf hold?
When installed into studs or masonry, a steel floating shelf with a distributed frame can support hundreds of pounds. The limiting factor is usually the wall, not the shelf.
Are steel floating shelves stronger than wood?
Yes. Steel has a much higher modulus of elasticity than wood, resulting in less deflection and no long-term creep under load.
Can floating shelves hold kitchen appliances?
Properly engineered steel floating shelves are commonly used for microwaves, mixers, and other countertop appliances.
